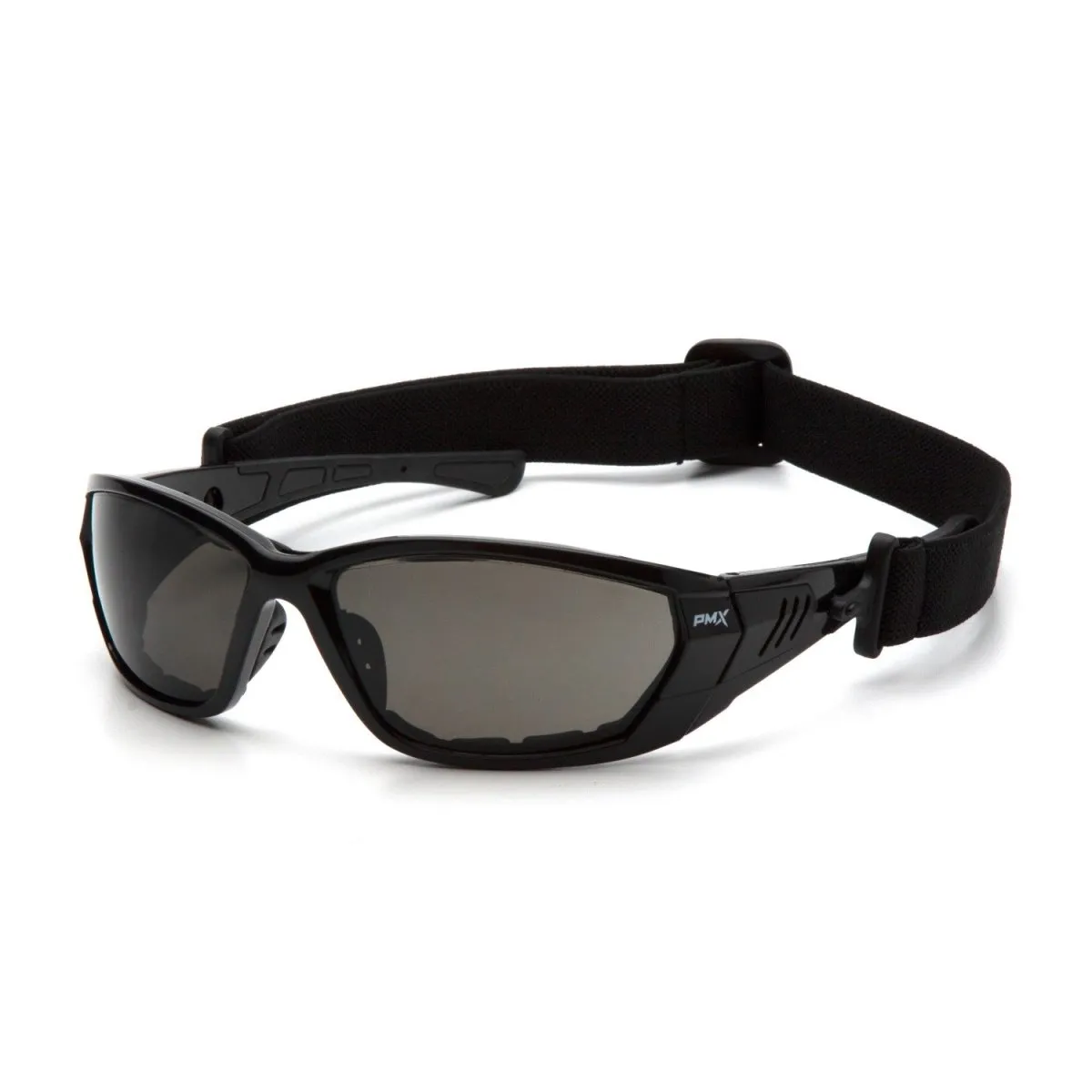

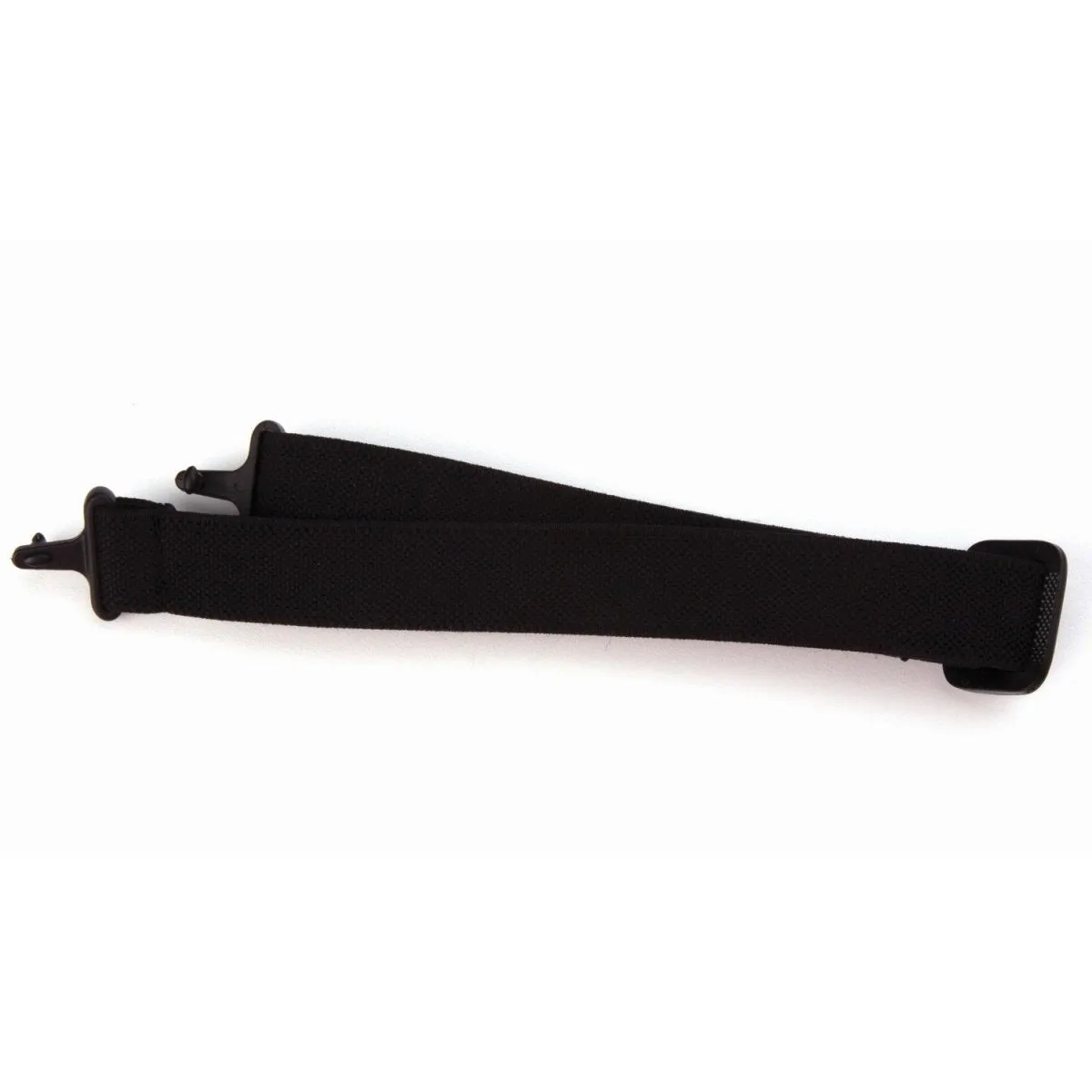

12 PairsPyramexAtrex Padded Safety Glasses with Optional Neck Strap
Padded black or black and red frame with various lenses.
- Inner foam padding
- Built-in rubber nosepiece.
- Durable frame features dual-injected straight-backed temples.
- Anti-fog lenses.
- Scratch resistant polycarbonate lens.
Lenses

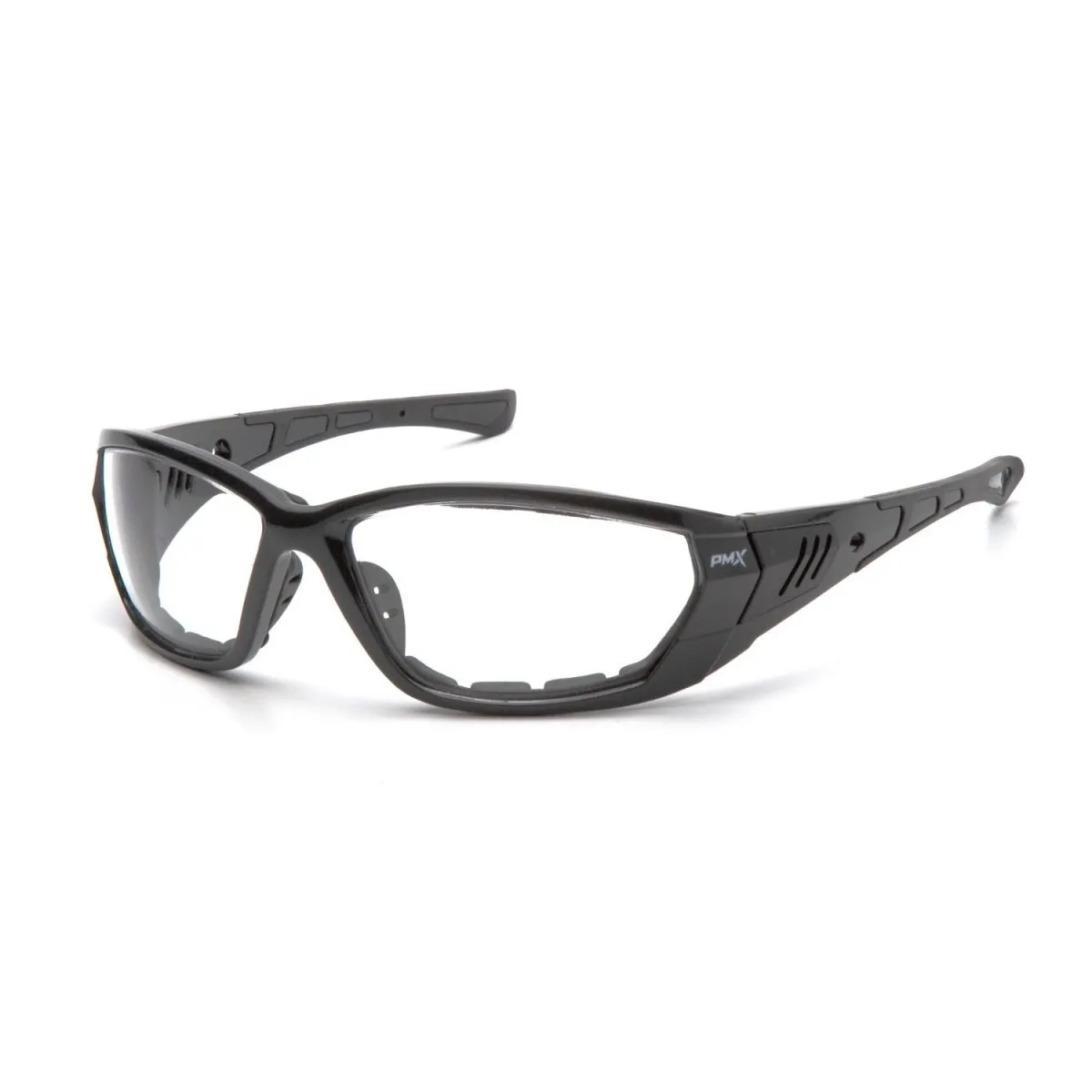

Clear Lens:General purposes for indoor applications that require impact protection.
Visible Light Transmitted | 96% |
UVA. UVB Blocked | 100% |
Blue Light Blocked | 9% |
IR Blocked | 18% |

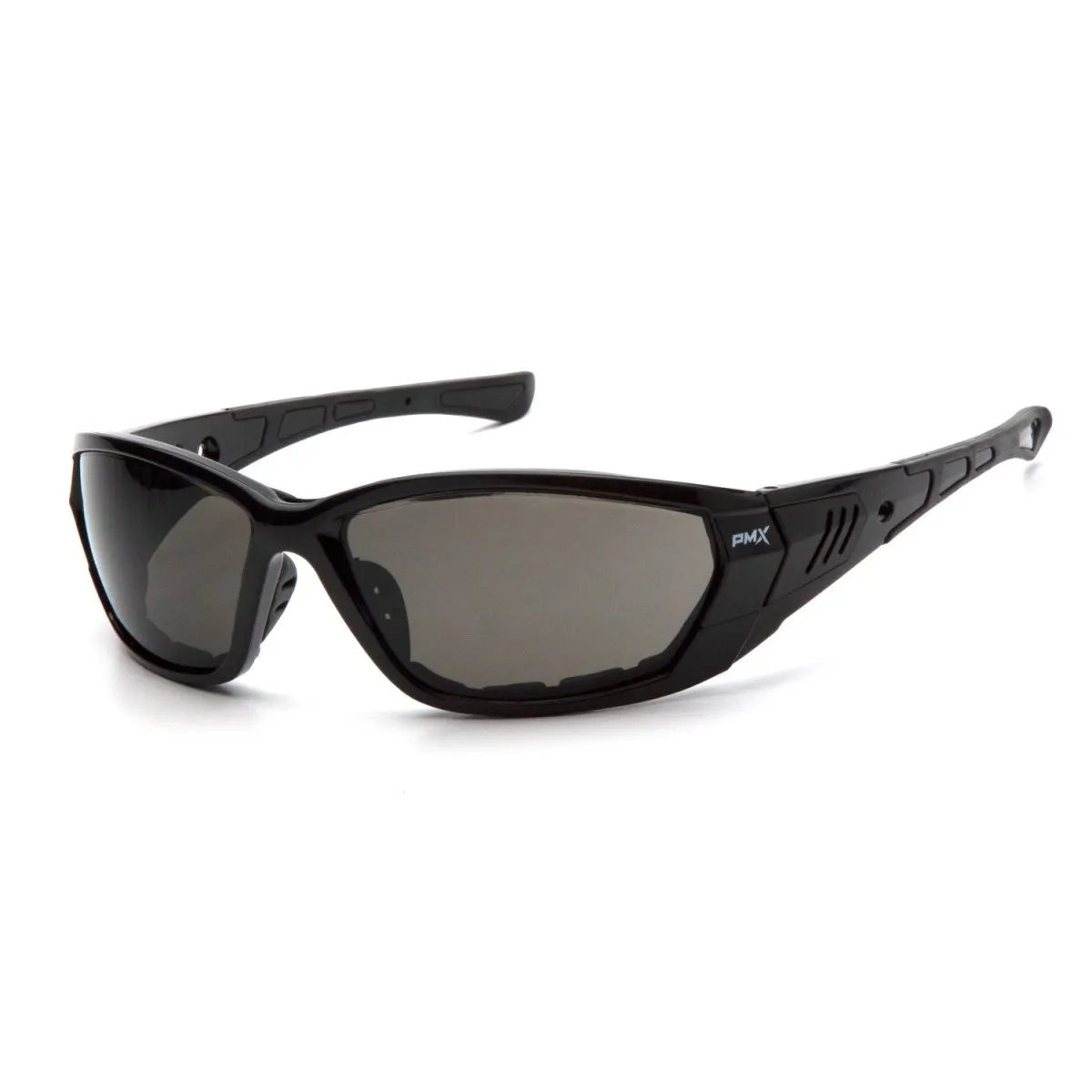

Gray Lens:Commonly used in outdoor applications. Offers protection from excessive glare.
Visible Light Transmitted | 23% |
UVA. UVB Blocked | 100% |
Blue Light Blocked | 74% |
IR Blocked | 48% |
Light Gray Lens:Commonly used in outdoor applications. Offers protection from excessive glare.
Visible Light Transmitted | 54% |
UVA. UVB Blocked | 100% |
Blue Light Blocked | 50% |
IR Blocked | 35% |

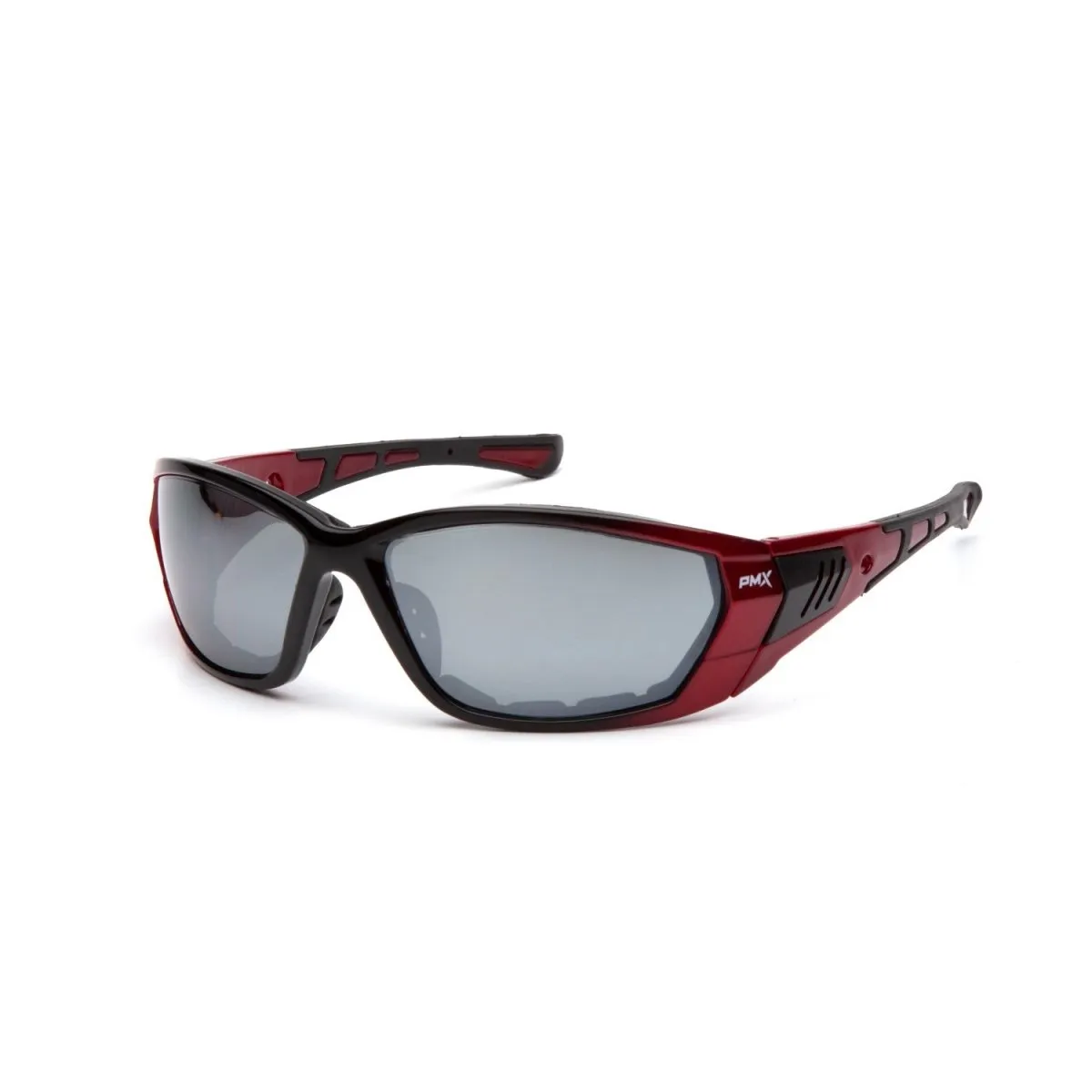

Silver Mirror Lens:Gray polycarbonate lens with silver mirror coating. Commonly used in outdoor applications. Reduces glare.
Visible Light Transmitted | 16% |
UVA. UVB Blocked | 99% |
Blue Light Blocked | 85% |
IR Blocked | 59% |

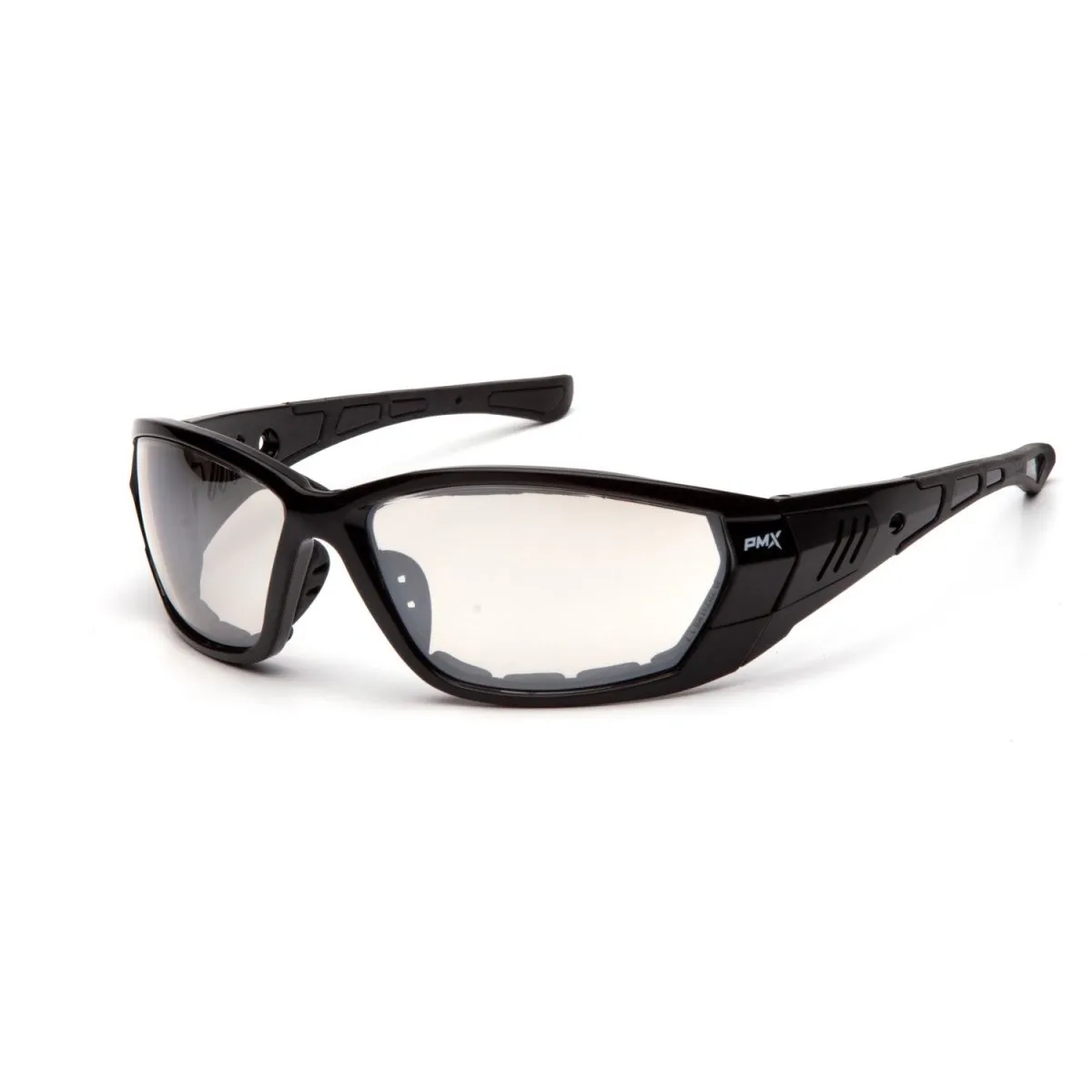

Indoor/Outdoor I/O Mirror Lens: Clear UV400 polycarbonate lens provides 100% protection from harmful UV-A and UV-B rays. Coated with a light gold mirror finish to reduce glare. Commonly used where it is required to move between indoor applications to outdoor applications.
Visible Light Transmitted | 50% |
UVA. UVB Blocked | 100% |
Blue Light Blocked | 65% |
IR Blocked | 39% |

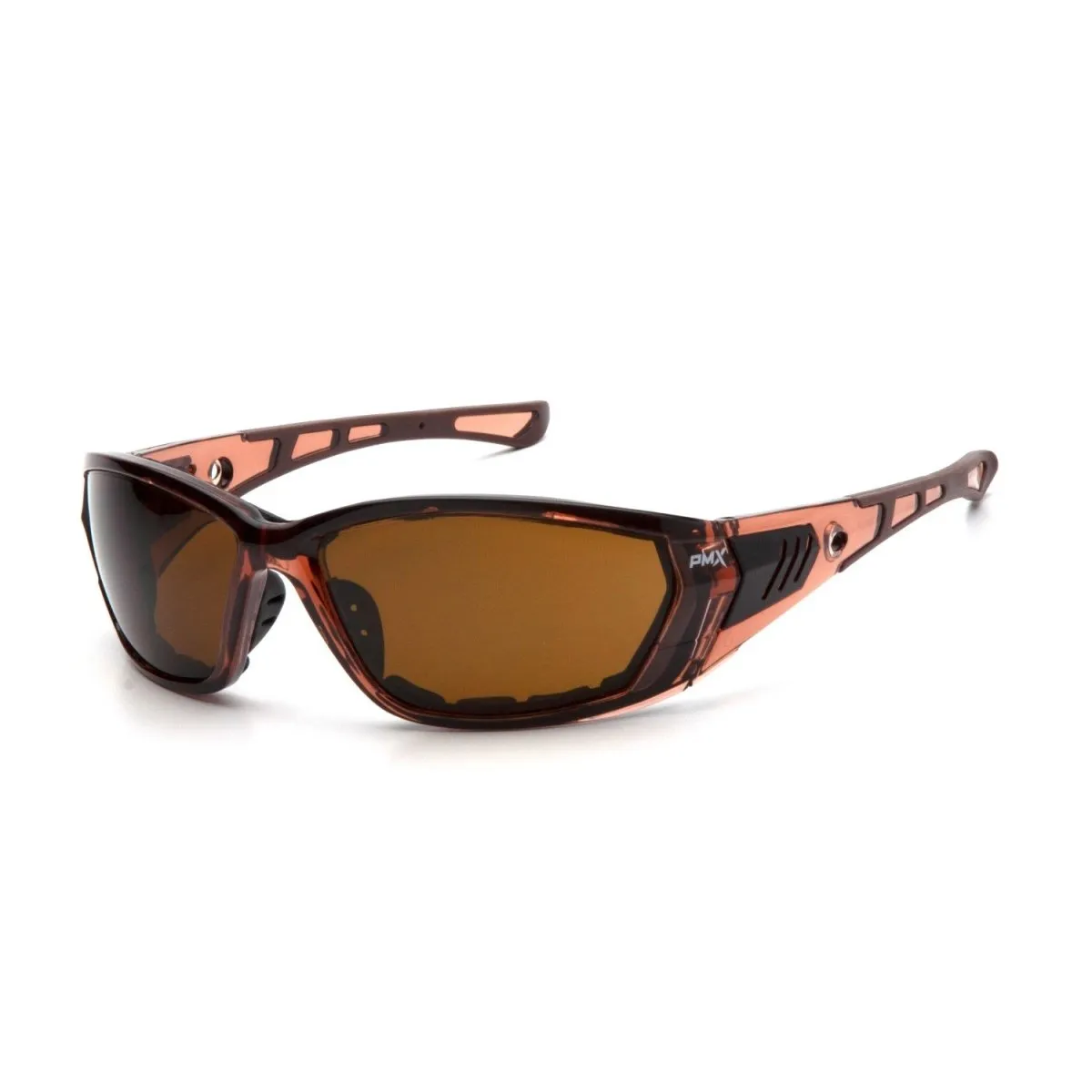

Coffee Lens: General purposes for indoor applications that require impact protection.
Visible Light Transmitted | 19% |
UVA. UVB Blocked | 99% |
Blue Light Blocked | 96% |
IR Blocked | 50% |
Specs
General Specifications
Weight: 29 gm
PD: 64 mm
Bridge: 16 mm
Lens base: 8 curve
Lens size diagonal: 62 mm
Lens size vertical: 35 mm
Lens thickness: 10 mm
Overall length (lens - tip): 116 mm
Overall width (hinge - hinge): 136 mm
Closest point between temple tips: 95 mm
Closest point between lens: 16 mm
Materials
Lens: polycarbonate
Frame: nylon
Temples: polycarbonate rubber
Hinge: polycarbonate
Screw: stainless steel
Foam: fire retardant rb
Part No. - Lens Marking - Temple Marking
SB8710DTP - P U6 - P Z87 / P c SEI Z94.3
SB8720DTP - P U6 L2.5 - P Z87 / P c SEI Z94.3
SB8725DTP - P - P Z87 / P c SEI Z94.3
SB8770DP - P - P Z87 / P c SEI Z94.3
SBR8710DTP - P U6 - P Z87 / P c SEI Z94.3
SBR8720DTP - P U6 L2.5 - P Z87 / P c SEI Z94.3
SBR8770DP - P - P Z87 / P c SEI Z94.3
Lens Marking Symbols
P: Manufacturer's mark
Z87: ANSI standard for eye and faceprotection devices
: High impact
UV Filter Transmittance
U6: .01% max effective far UV .1% maxnear UV
Visible Light Filters
L2.5: 29% max visible light
Temple Marking Symbols
P: Manufacturer's mark
Z87: ANSI standard for eye and faceprotection devices
: High impact
c SEI Z94.3: CAN/CSA standard for eye andface protection devices
